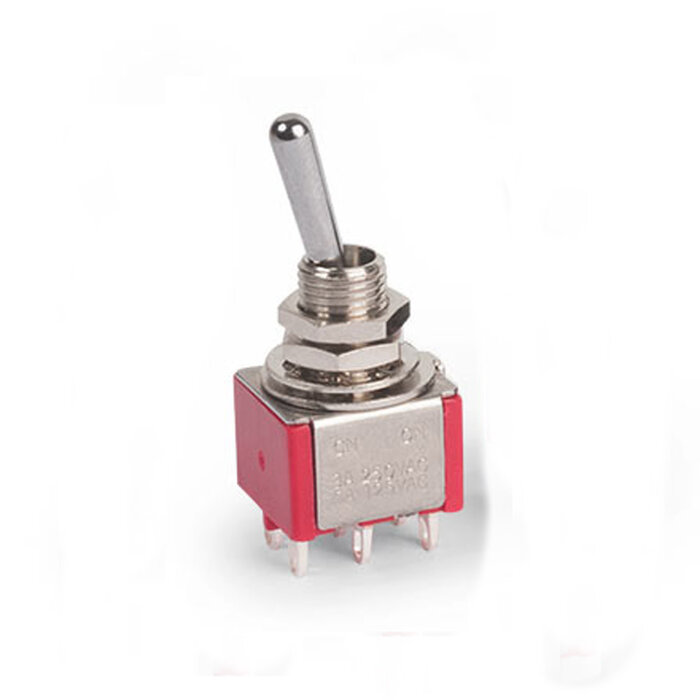

Carling DPDT Mini Toggle Switch

Double Pole, Double Throw, Ideal for phase switching, coil-tapping, series/parallel pickup switching in guitars.
$6.00
Free Shipping new items + $ 99 (US con)
24/7 Online Shopping
FREE Annual Setup on all New Guitars
Financing Available
SKU: 9028
Availability: In stock (58)

Carling DPDT Mini Toggle Switch
Mini Toggle, DPDT, 2 Position, Solder Lugs

Carling mini-toggle switch, DPDT, ideal for phase switching, coil-tapping, series/parallel pickup switching in guitars.

0.354" bushing length
¼" mounting hole diameter
Double pole/Double throw (DPDT)

Specs:
Actuator Travel 25°
Body Height 0.402 in.
Bushing Diameter 0.240 in.
Bushing Length 0.354 in.
Contact Resistance ≤ 10 mΩ initial @ 2 - 4 VDC 100mA
Dielectric Strength 1,500 Volts RMS at sea level
Electrical Life 50,000 make & break cycles at full load
Insulation Resistance ≥ 1,000 MΩ
Item Length 0.50 in.
Item Width 0.449 in.
Operating Temperature (TJ) -30°C to 85°C
Toggle Diameter 0.118 in.
Toggle Height 0.409 in.

MannMade USA # 9028
