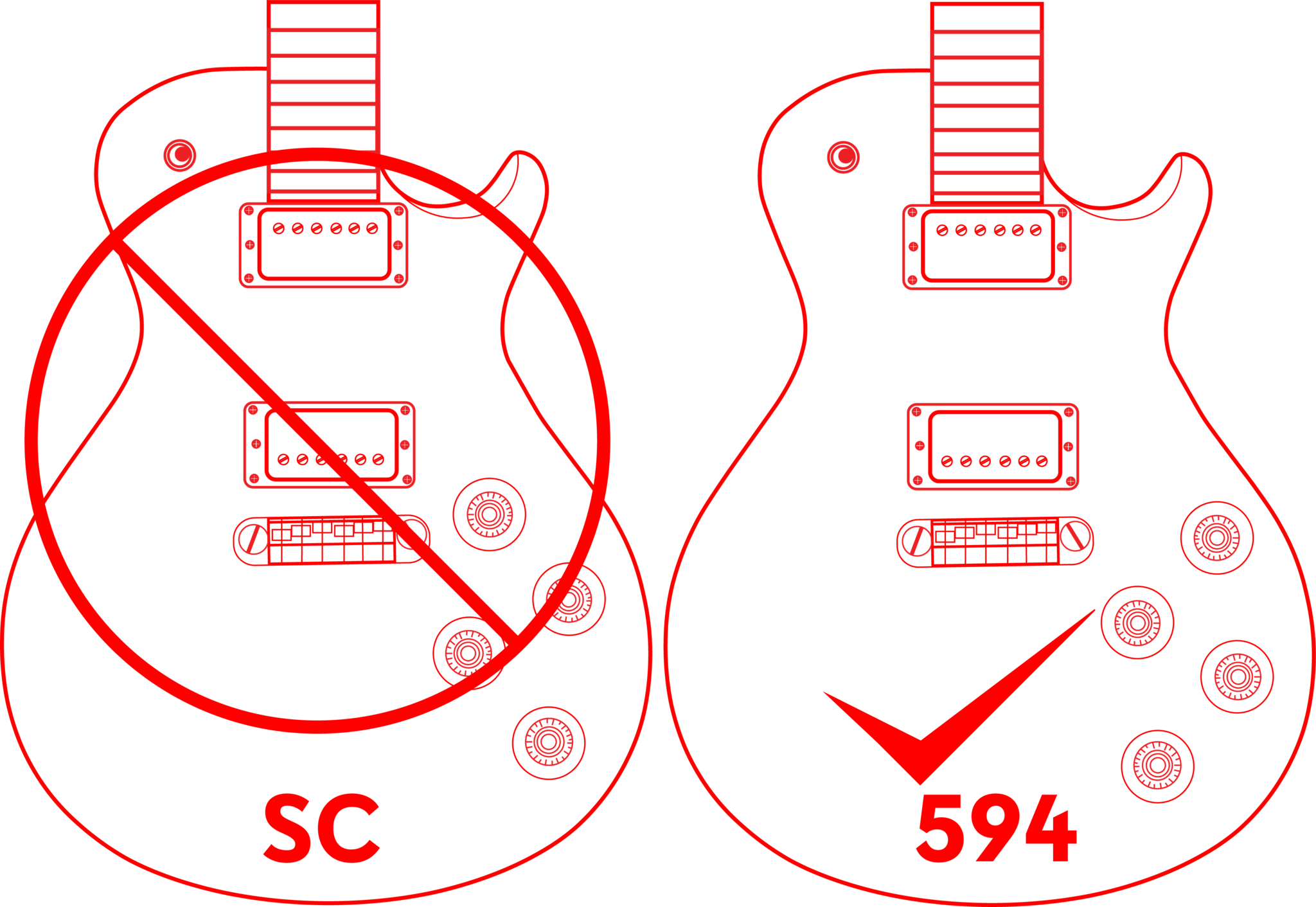

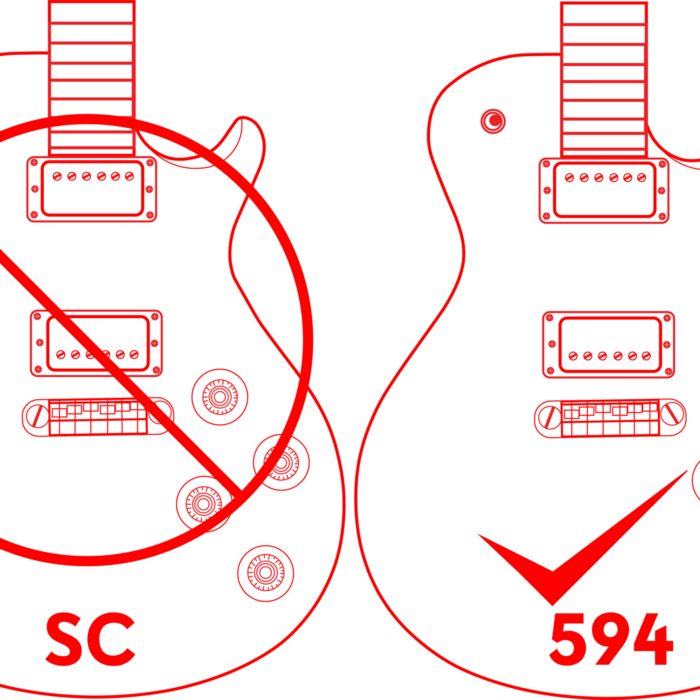

Gunstreet Classic PRS 594 Single Cut Coil tapping Solderless Wiring Harness

Gunstreet Classic PRS 594 Single Cut Coil tapping Solderless Wiring Harness

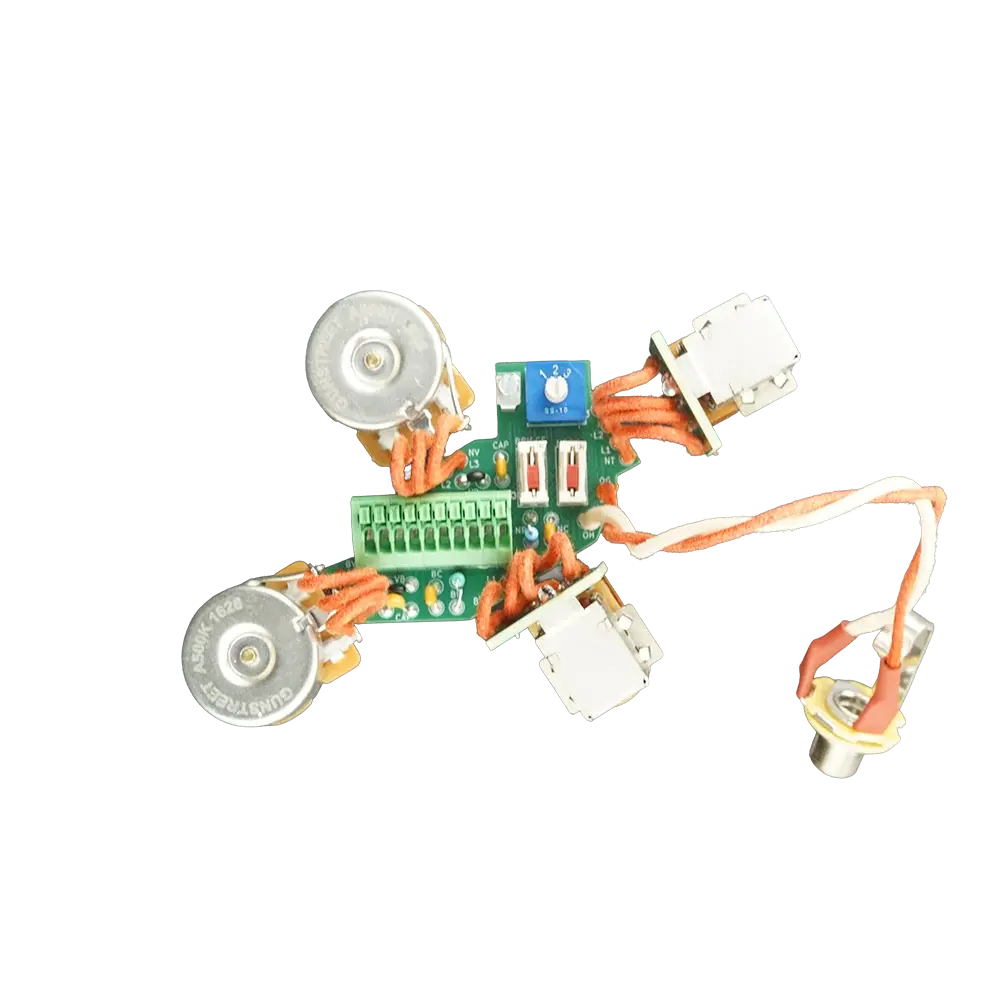

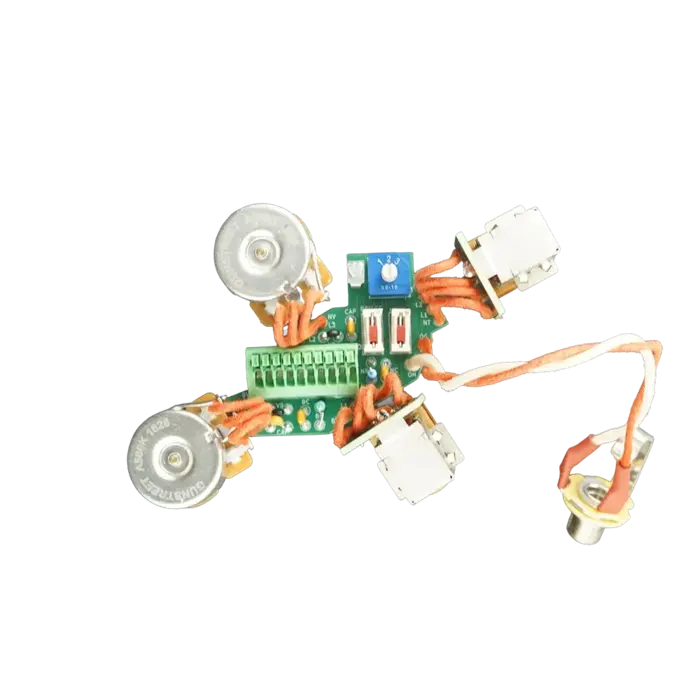

Tap into new sounds without sacrificing the classic character of your PRS. The Gunstreet Classic PRS Single Cut Coil Tapping Solderless Wiring Harness expands on our standard solderless Classic kit by bringing three single coil sounds to your fingertips.

New US Spec DHE “Gunstreet” Pots:

• Taper style: Custom Audio
• Shaft Diameter: 3/8” (9.52MM)
• Shaft Length: 3/4th "Long Shaft" (19.05MM )
• Knob Pattern: 18 spline coarse Split shaft knurling
• Nut thread: 3/8 x 32

Bourns Push Pull Pots:

• Taper style: Custom Audio
• Shaft Diameter: 3/8” (9.52MM)
• Shaft Length: 3/4th "Long Shaft" (19.05MM )
• Knob Pattern: 18 spline coarse Split shaft knurling
• Nut thread: 3/8 x 32

New Gunstreet Toggle Switch Specs:

Our new switch offers better overall quality compared to Switchcraft while offering a quieter switching experience.

• Body cavity depth 5/8" (15.87mm)
• Mounting hole diameter 1/2" (12.70mm)
• Thread height 7/32" (5.56mm)
• Switch Tip Threading: 8-32

Capacitor:

• Brand: Vishay
• Values: 0.022uf -/+10%

Neutrik Rean mono jack:

• Required mounting hole diameter: 3/8" (9.53mm)
• Thread: 3/8 x 32
• Thread height: 1/4" (6.35mm)

NOTE:

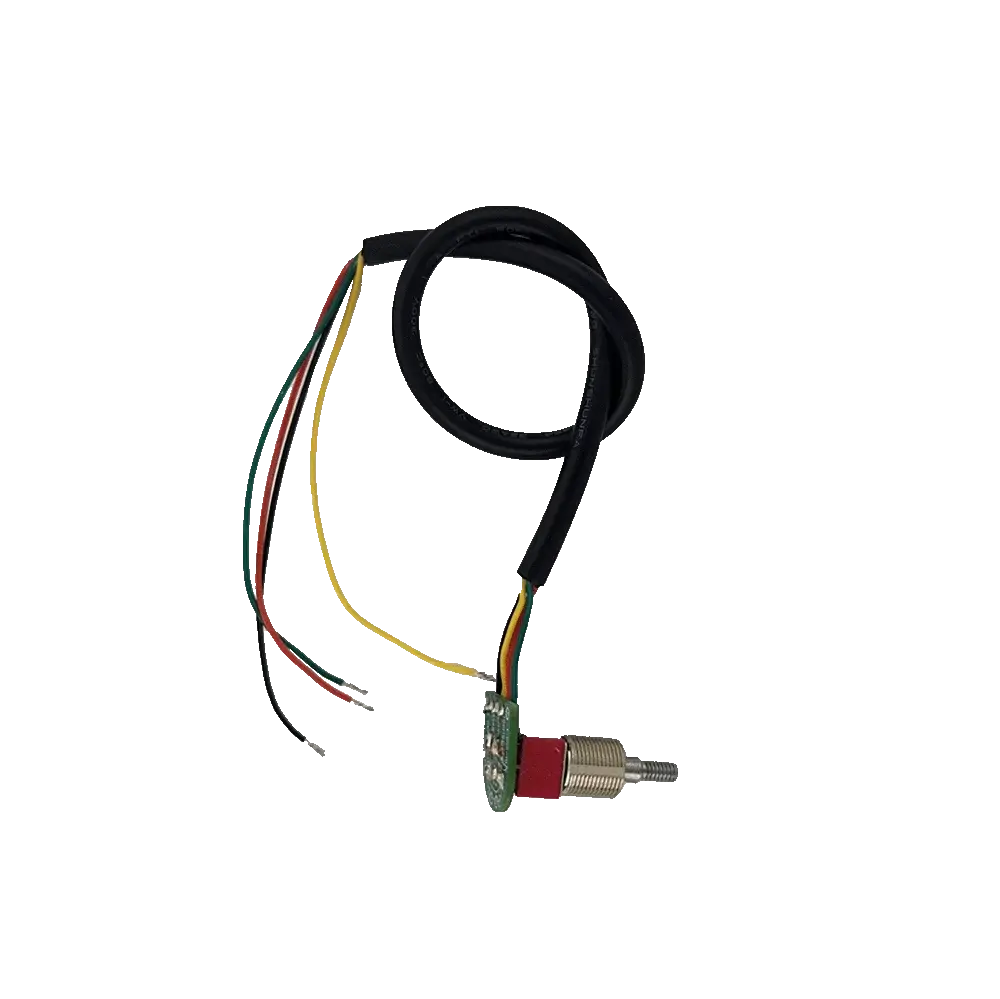

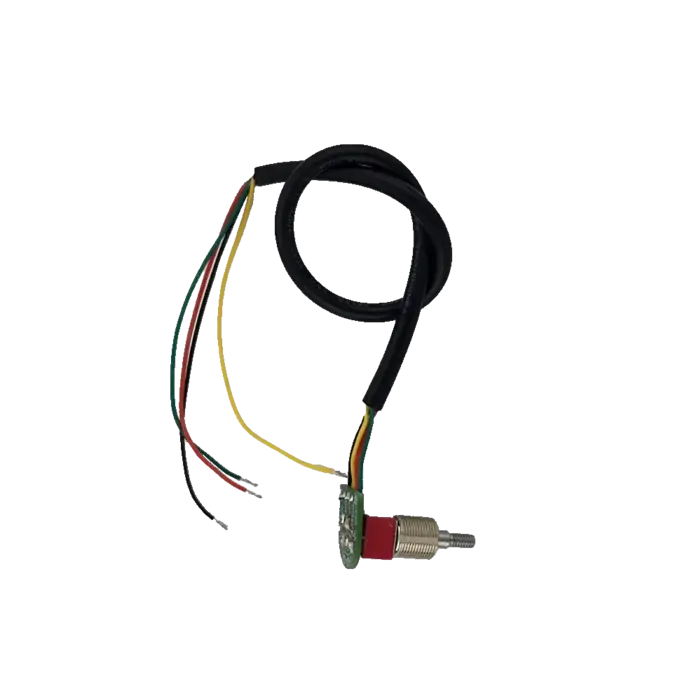

• This kit Requires a 4 conductor Pickup Lead
• This kit is designed for output jack cavities where you can pass the jack through from the inside.
• Converting an Import guitar to US spec will require you to enlarge the stock pot holes to be 3/8th diameter
• As long as your pot holes are 3/8th diameter, this kit was designed to fit the standard thicknesses of both US and Import tops.
