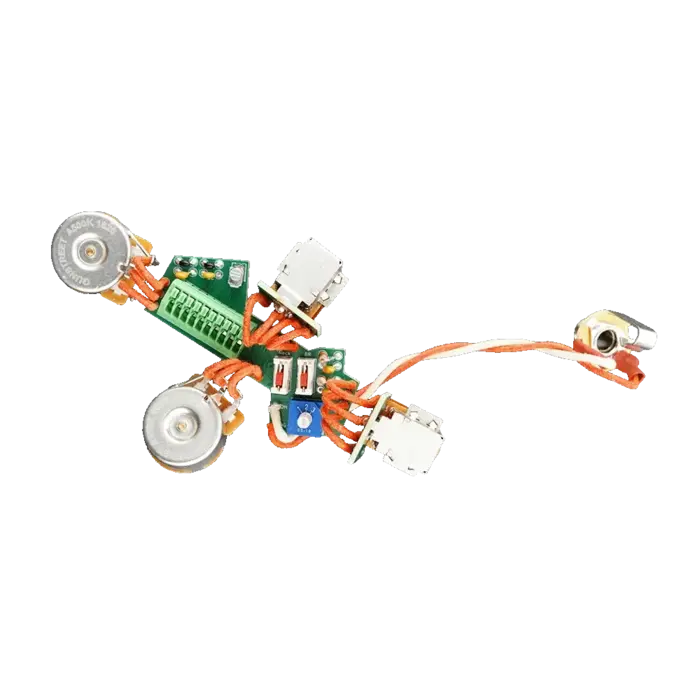

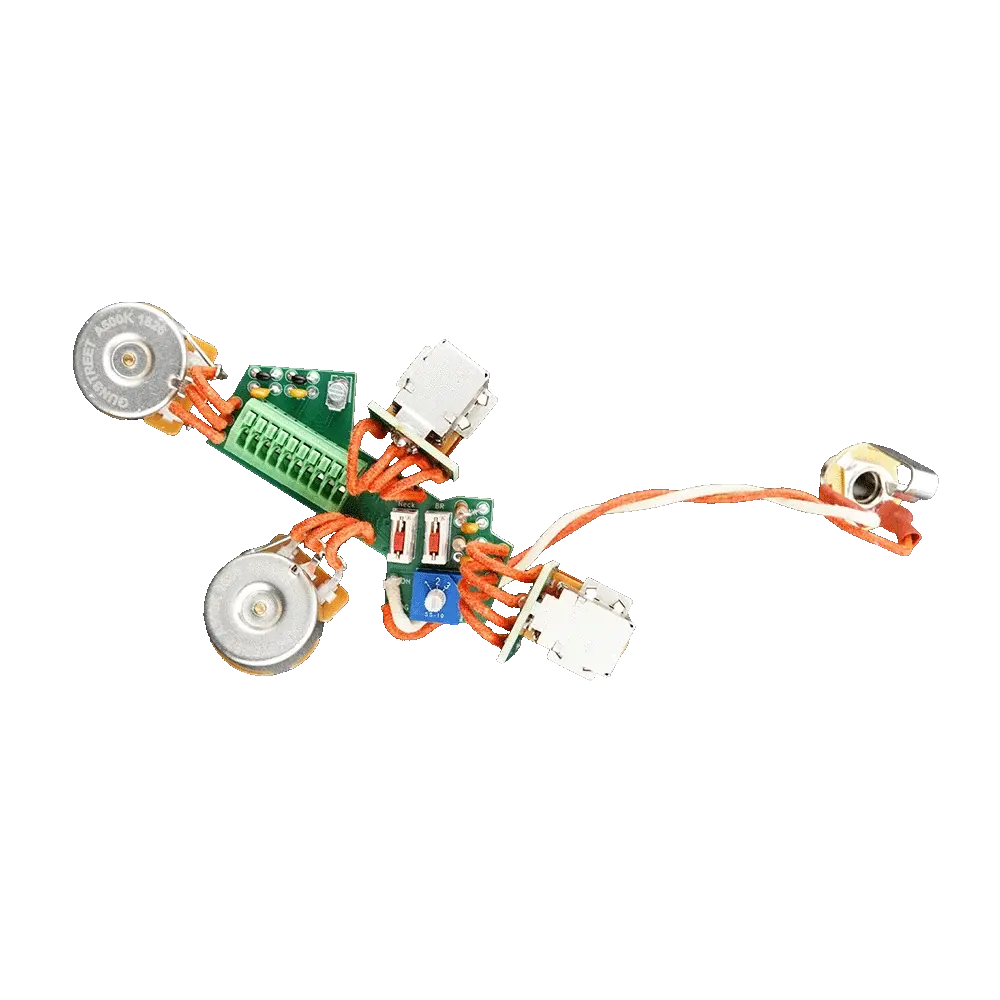

Gunstreet Classic PRS "SC" Single Cut Coil tapping Solderless Wiring Harness

Gunstreet Classic PRS "SC" Single Cut Coil tapping Solderless Wiring Harness

Tap into new sounds without sacrificing the classic character of your PRS. The Gunstreet Classic PRS "SC" Coil Tapping Solderless Wiring Harness expands on our standard solderless lineup by bringing three single coil sounds to your fingertips.

New Universal DHE “Gunstreet” Pots:

• Taper style: Custom Audio
• Shaft Diameter: 0.3110" (7.90MM)
• Shaft Length: 0.37" (9.39MM)
• Knob Pattern: 18 spline coarse Split shaft knurling
• Nut thread: M8
• New Gunstreet Toggle Switch Specs

New switch offers better overall quality compared to Switchcraft while offering a quieter switching experience.

• Body cavity depth 5/8" (15.87mm)
• Mounting hole diameter 1/2" (12.70mm)
• Thread height 7/32" (5.56mm)
• Switch Tip Threading: M4

Capacitor:

• Brand: Vishay
• Values: 0.022uf -/+10%

Jack:

• Neutrik Rean mono jack
• Required mounting hole diameter: 3/8" (9.53mm)
• Thread: 3/8 x 32
• Thread height: 1/4" (6.35mm)

NOTE:

• This kit Requires a 4 conductor Pickup Lead
• This kit is designed for output jack cavities where you can pass the jack through from the inside.

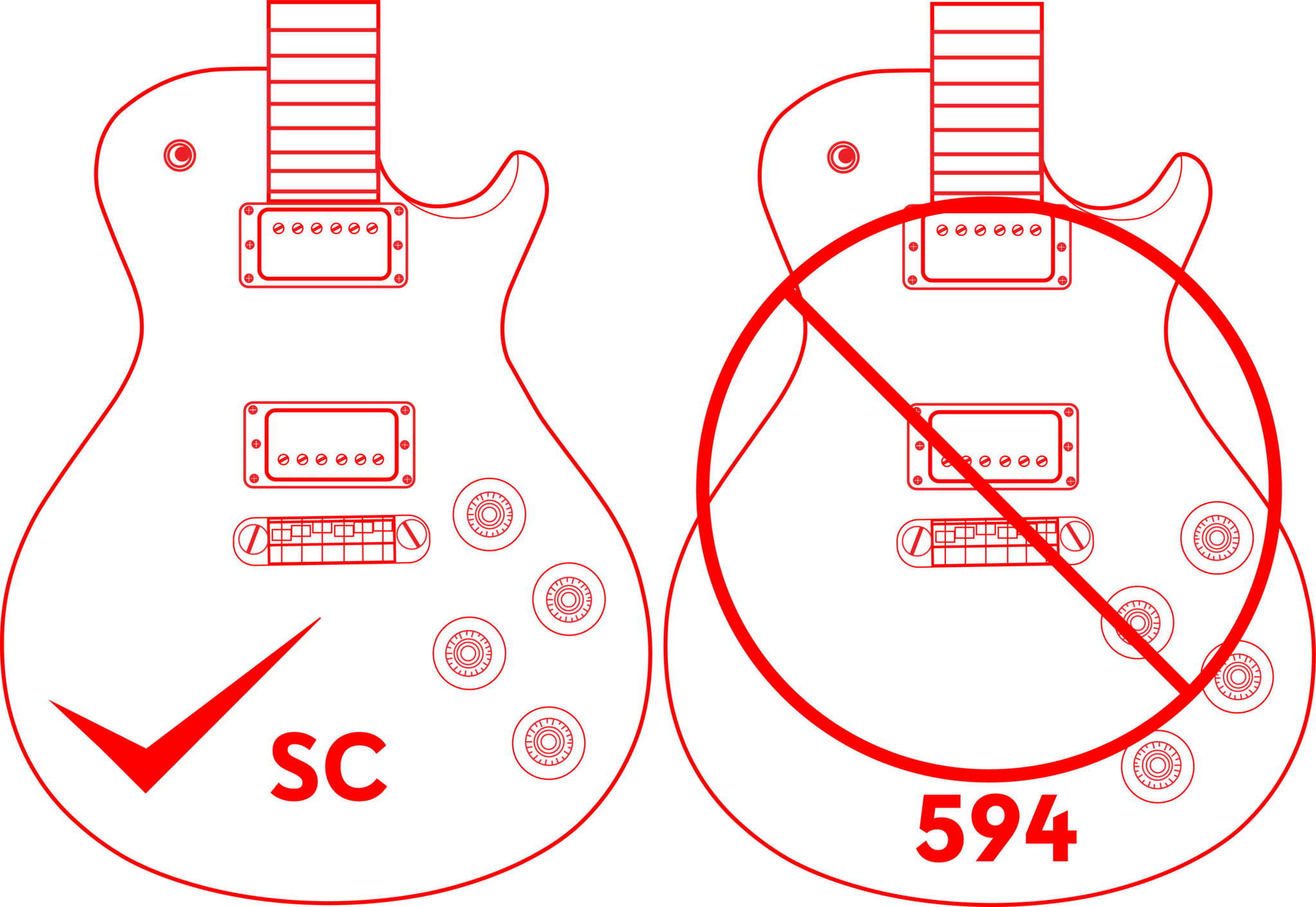

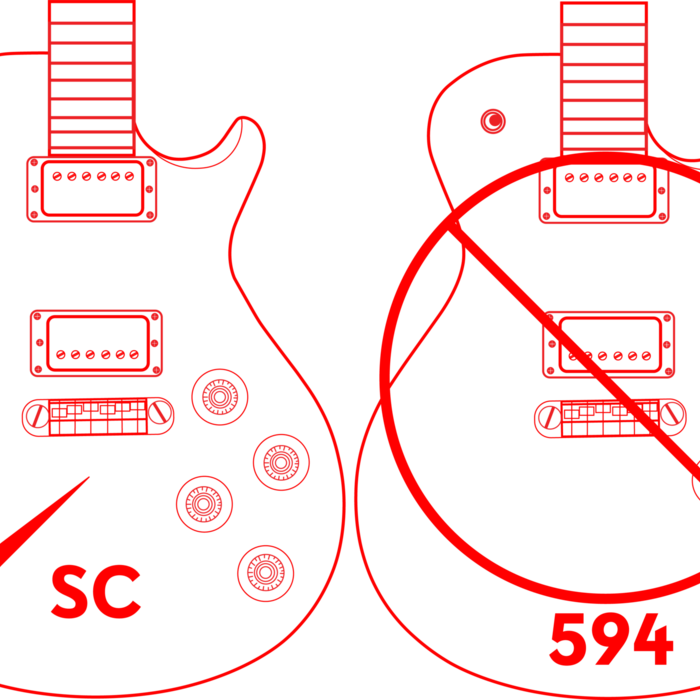

• This kit was designed to fit both US and Import tops.
