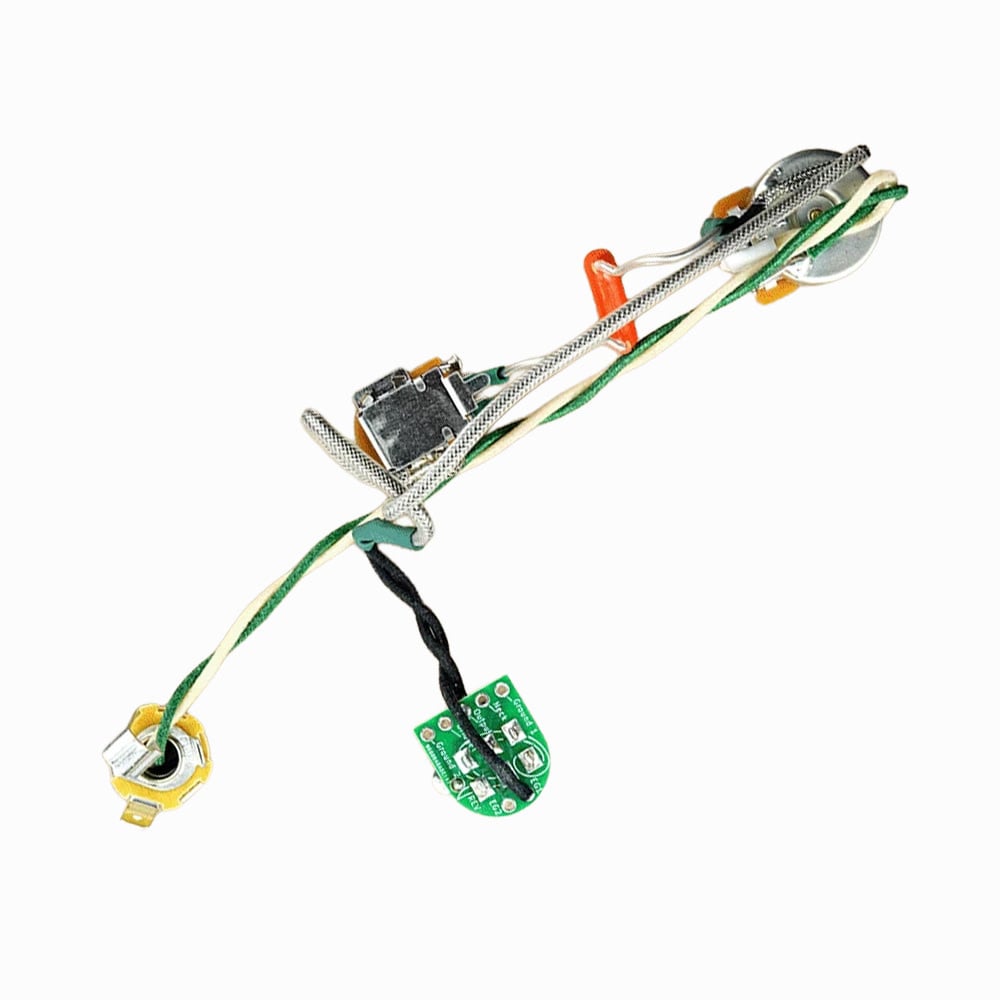

Gunstreet Classic PRS Toggle Switch Hand-Wired Wiring Harness - Coil Tapping -Treble Bleed
Gunstreet Classic PRS Toggle Switch Hand-Wired Wiring Harness - Coil Tapping -Treble Bleed
Gunstreet kits are a perfect drop-in replacement for your PRS style guitar, whether you want to change how your instrument sounds, or just want to improve the durability we have something perfect for you!
Found stock in most PRS guitars, this one is often called a “Volume bleed”, this circuit acts as a high pass filter. Get this kit if you like to use both your volume and tone control a lot and want more highs at lower volumes.
Gunstreet Toggle Switch Specs
Gunstreet witch offers a better overall quality compared to Switchcraft. All while offering a quieter switching experience.
Body cavity depth 5/8" (15.87mm)
Mounting hole diameter 1/2" (12.70mm)
Thread height 7/32" (5.56mm)
- Switch Tip Threading: 8-32
DHE Gunstreet Pots "Universal fit"
Taper Style: Custom Audio Taper
Knob type: 18 spline Coarse knurling
Shaft diameter: 8mm
Required mounting hole diameter: 8mm
- Thread type: M8 x 0.75
- Value: 500k +/-15%
Capacitor Specs
Brand: CDE
Model: "Orange Drop"
Value .022uF -/+10%
Neutrik Output Jack Specs
Mounting hole diameter 3/8" (9.52mm)
Thread 3/8 x 32
Threaded portion height 1/4" (6.35mm)
NOTE:
- Your pickups must have 4 conductor wires

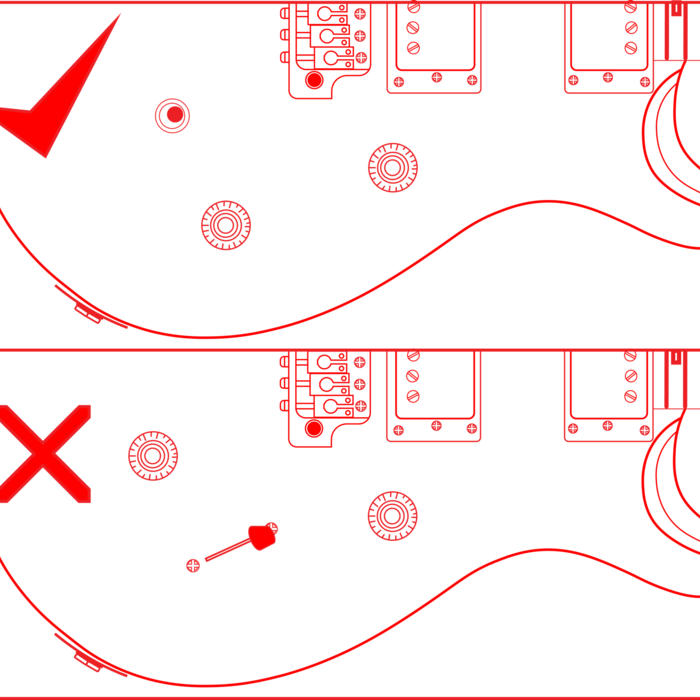

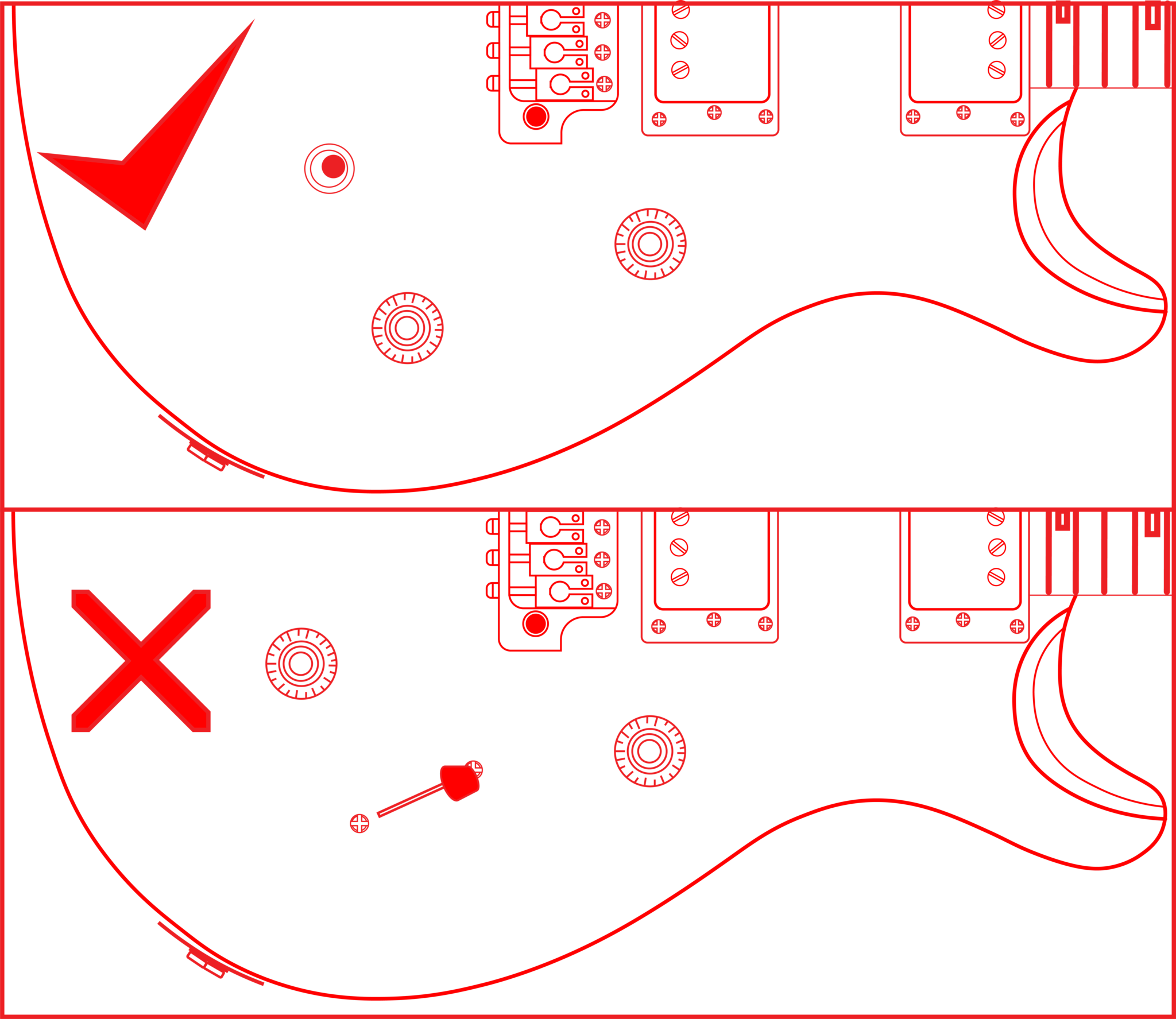

- Please note that this kit is compatible exclusively with guitars equipped with toggle switches; it is not suitable for models using lever switches.
- Our Custom Pots use an 18 tooth knurled shaft. You will need a knob that fit this. SE's stock knobs will fit this, but you will want to confirm US spec models
